Chargers

  • 2 Wheeler
  • 3 Wheeler

  • 2W Chargers
  • CH2W 750W charger
  • CH2W 900W charger

2W Chargers

• Charger with Resonant topology for best in class efficiency of > 91%.
• Higher efficiency and Input Power Factor >0.99 will ensure the lesser power bills.
• Input surge protection upto 4kv and Input EMI filter is available
• Input/output Inrush current, output Over voltage, output over load, over temperature, Battery reverse Protectrons are available

Product Range


48v

  • Model: C2BK0480006, C2BK060006
  • Type: Off board

60v

  • Model: C2BK0480006, C2BK060006
  • Type: Off board

72v

  • Model: C2BK0480006, C2BK060006
  • Type: Off board

Features

Compact 'n' Light Weight
Fast Charging
CAN Communication
Ambient Temperature Control
Battery Level Indicator
Zero Start Charging
Reverse Polarity Protection
Multiple Profile Modes

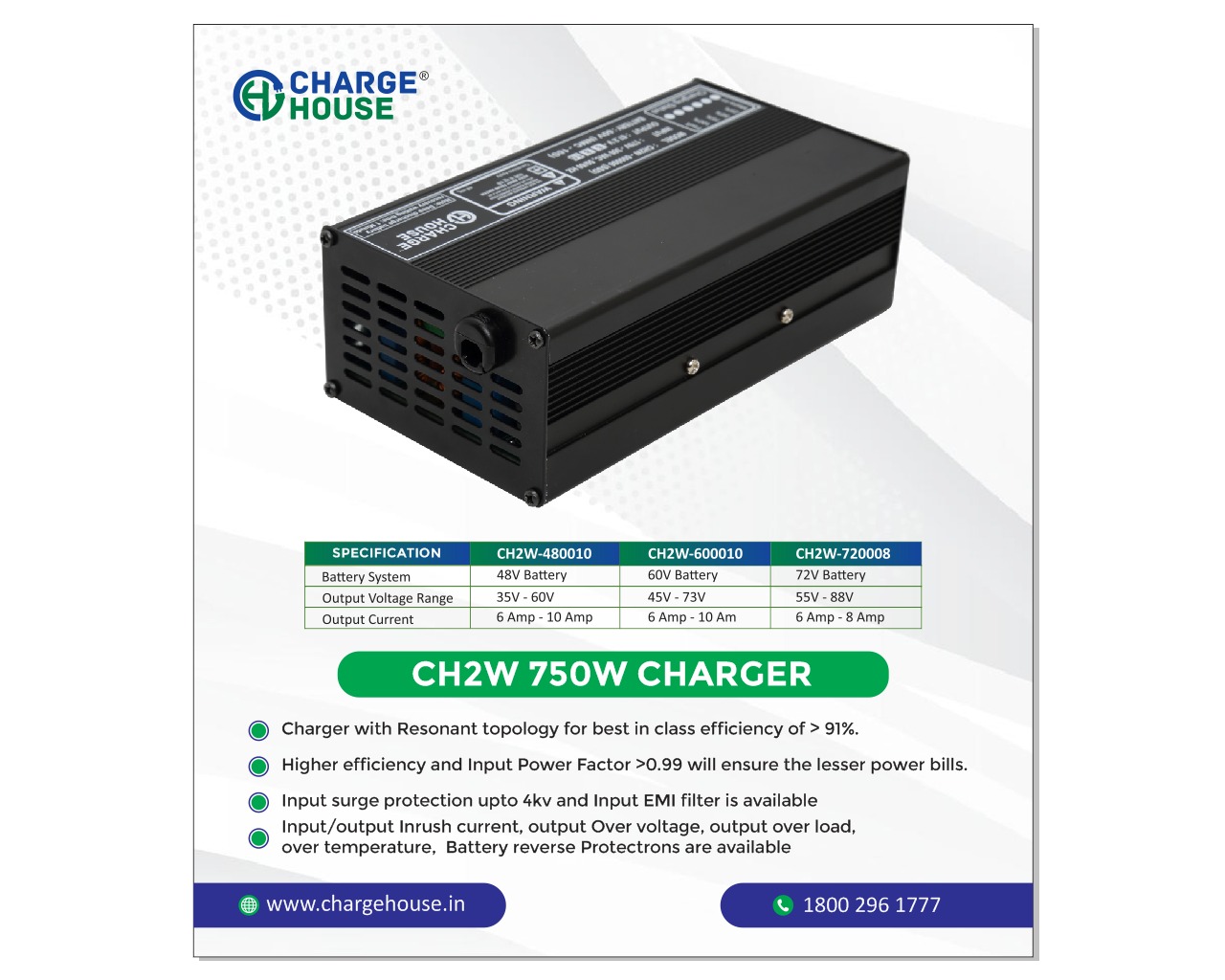

CH2W 750W Charger

• Charger with Resonant topology for best in class efficiency of > 91%.
• Higher efficiency and Input Power Factor >0.99 will ensure the lesser power bills.
• Input surge protection upto 4kv and Input EMI filter is available
• Input/output Inrush current, output Over voltage, output over load, over temperature, Battery reverse Protectrons are available

Product Range


48v

  • Model: CH2W-480010
  • Output Voltage Range : 35V - 60V
  • Output Current : 6 Amp - 10 Amp

60v

  • Model: CH2W-600010
  • Output Voltage Range : 45V - 73V
  • Output Current : 6 Amp - 10 Amp

72v

  • Model: CH2W-720008
  • Output Voltage Range : 55V - 88V
  • Output Current : 6 Amp - 8 Amp

Features

Compact 'n' Light Weight
Fast Charging
CAN Communication
Ambient Temperature Control
Battery Level Indicator
Zero Start Charging
Reverse Polarity Protection
Multiple Profile Modes

CH2W 900W Charger

• Charger with Resonant topology for best in class efficiency of > 91%.
• Higher efficiency and Input Power Factor >0.99 will ensure the lesser power bills.
• Input surge protection upto 4kv and Input EMI filter is available
• Input/output Inrush current, output Over voltage, output over load, over temperature, Battery reverse Protectrons are available

Product Range


48v

  • Model: CH2W-480010
  • Output Voltage Range : 35V - 60V
  • Output Current : 8 Amp - 10 Amp

60v

  • Model: CH2W-600010
  • Output Voltage Range : 45V - 73V
  • Output Current : 8 Amp - 10 Amp

72v

  • Model: CH2W-720008
  • Output Voltage Range : 55V - 88V
  • Output Current : 8 Amp - 8 Amp

Features

Compact 'n' Light Weight
Fast Charging
CAN Communication
Ambient Temperature Control
Battery Level Indicator
Zero Start Charging
Reverse Polarity Protection
Multiple Profile Modes

3W Charger

• Charger with Resonant topology for best in class efficiency of > 91%.
• Higher efficiency and Input Power Factor >0.99 will ensure the lesser power bills.
• Input surge protection upto 4kv and Input EMI filter is available
• Input/output Inrush current, output Over voltage, output over load, over temperature, Battery reverse Protectrons are available

Product Range


48v

  • Model: CH3W-480010
  • Output Voltage Range : 35V - 60V
  • Output Current : 8 Amp - 10 Amp

60v

  • Model: CH3W-600010
  • Output Voltage Range : 45V - 73V
  • Output Current : 8 Amp - 10 Amp

72v

  • Model: CH3W-720008
  • Output Voltage Range : 55V - 88V
  • Output Current : 8 Amp - 8 Amp

Features

Compact 'n' Light Weight
Fast Charging
CAN Communication
Ambient Temperature Control
Battery Level Indicator
Zero Start Charging
Reverse Polarity Protection
Multiple Profile Modes

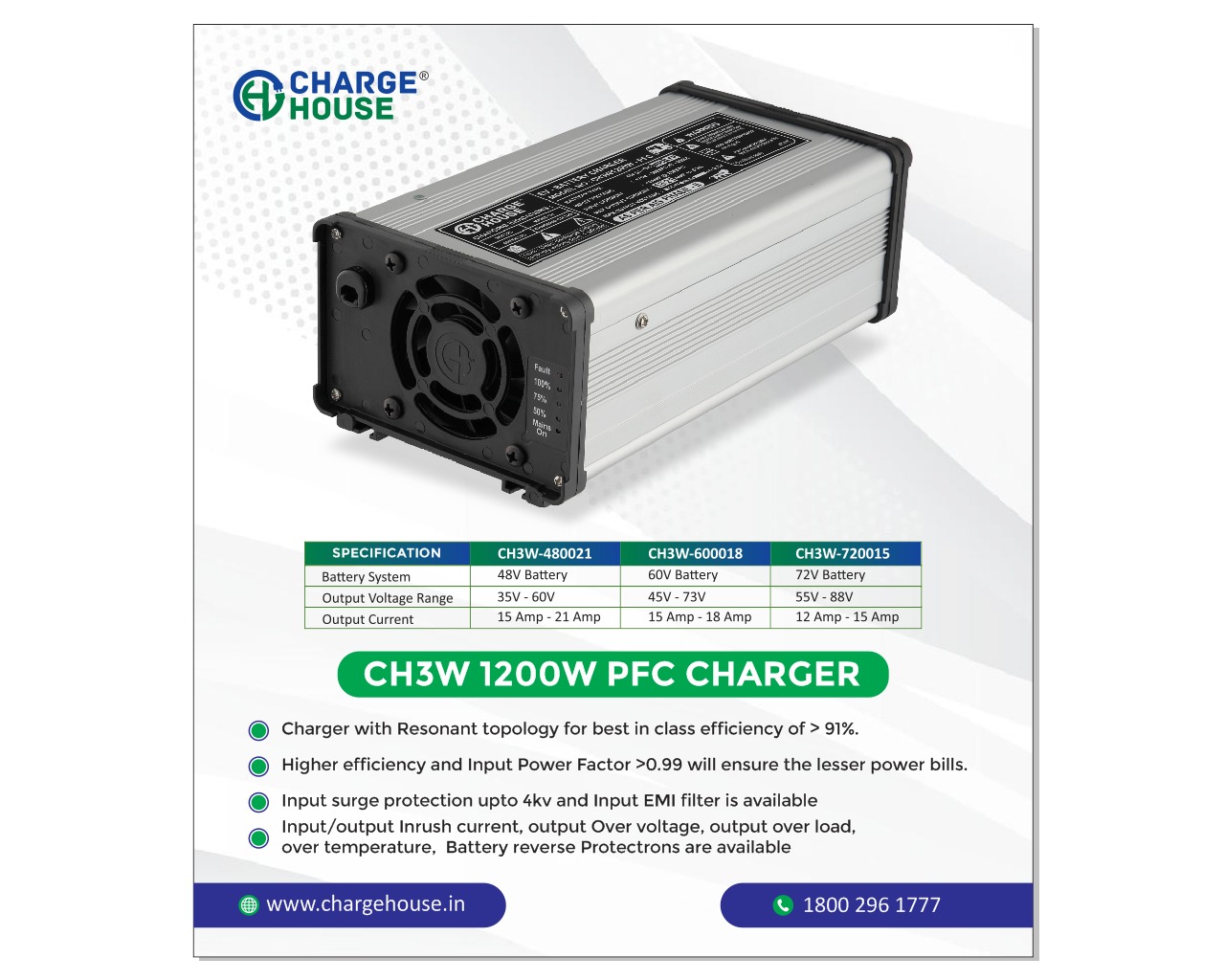

CH3W 1200 PFC Charger

• Charger with Resonant topology for best in class efficiency of > 91%.
• Higher efficiency and Input Power Factor >0.99 will ensure the lesser power bills.
• Input surge protection upto 4kv and Input EMI filter is available
• Input/output Inrush current, output Over voltage, output over load, over temperature, Battery reverse Protectrons are available

Product Range


48v

  • Model: CH3W-480021
  • Output Voltage Range : 35V - 60V
  • Output Current : 15 Amp - 21 Amp

60v

  • Model: CH3W-600018
  • Output Voltage Range : 45V - 73V
  • Output Current : 15 Amp - 18 Amp

72v

  • Model: CH3W-7200015
  • Output Voltage Range : 55V - 88V
  • Output Current : 12 Amp - 15 Amp

Features

Compact 'n' Light Weight
Fast Charging
CAN Communication
Ambient Temperature Control
Battery Level Indicator
Zero Start Charging
Reverse Polarity Protection
Multiple Profile Modes

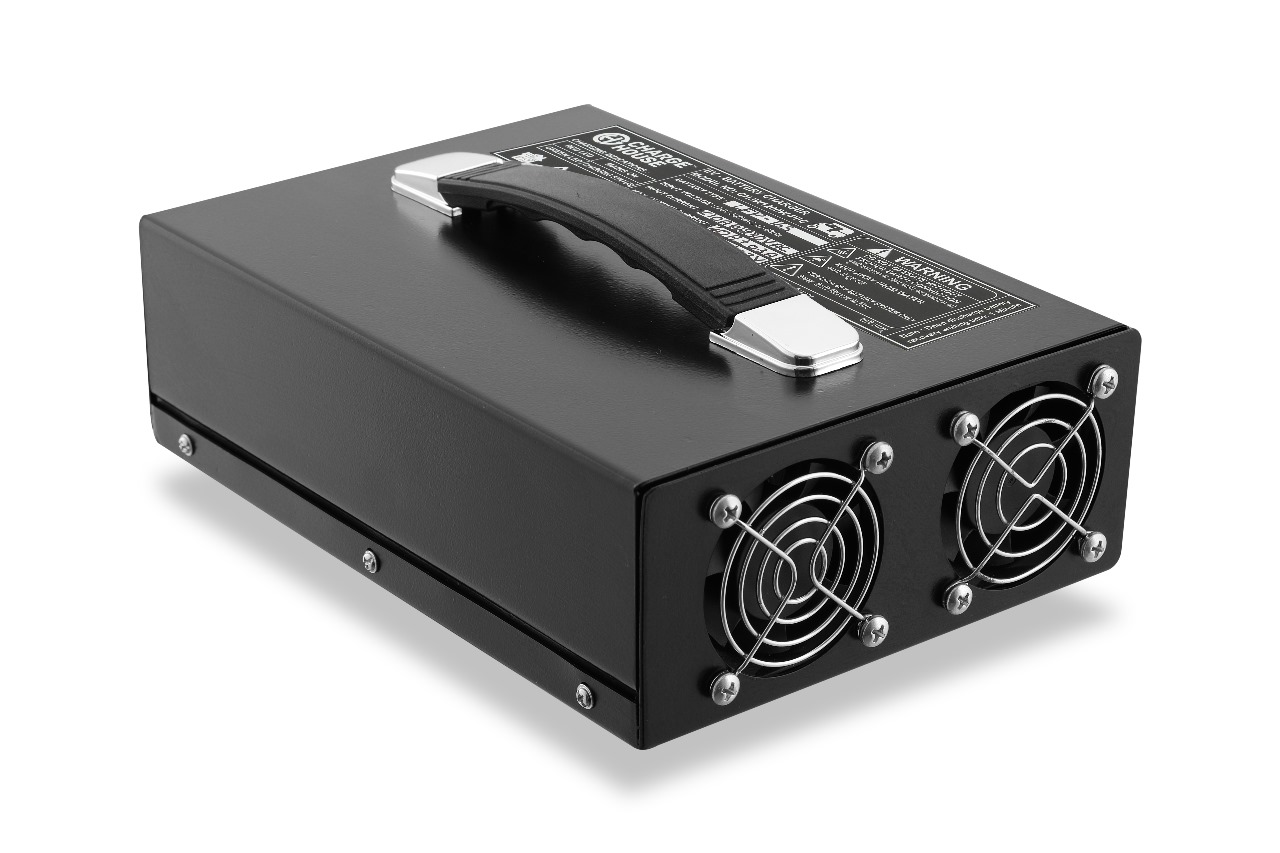

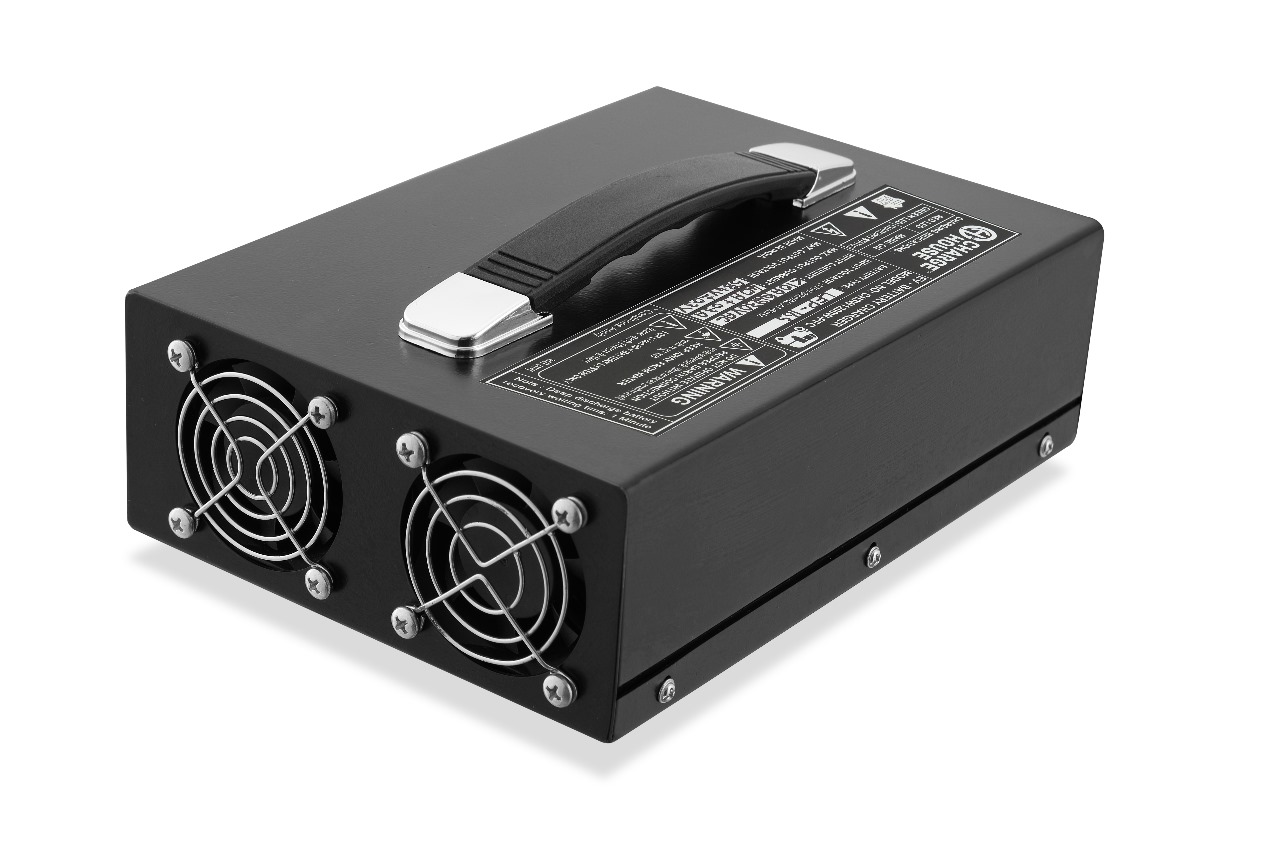

CH3W 2400 PFC Charger

• Charger with Resonant topology for best in class efficiency of > 91%.
• Higher efficiency and Input Power Factor >0.99 will ensure the lesser power bills.
• Input surge protection upto 4kv and Input EMI filter is available
• Input/output Inrush current, output Over voltage, output over load, over temperature, Battery reverse Protectrons are available

Product Range


48v

  • Model: CH3W-480040
  • Output Voltage Range : 35V - 60V
  • Output Current : 35 Amp - 40 Amp

60v

  • Model: CH3W-600035
  • Output Voltage Range : 45V - 73V
  • Output Current : 30 Amp - 35 Amp

72v

  • Model: CH3W-7200025
  • Output Voltage Range : 55V - 88V
  • Output Current : 20 Amp - 25 Amp

Features

Compact 'n' Light Weight
Fast Charging
CAN Communication
Ambient Temperature Control
Battery Level Indicator
Zero Start Charging
Reverse Polarity Protection
Multiple Profile Modes
